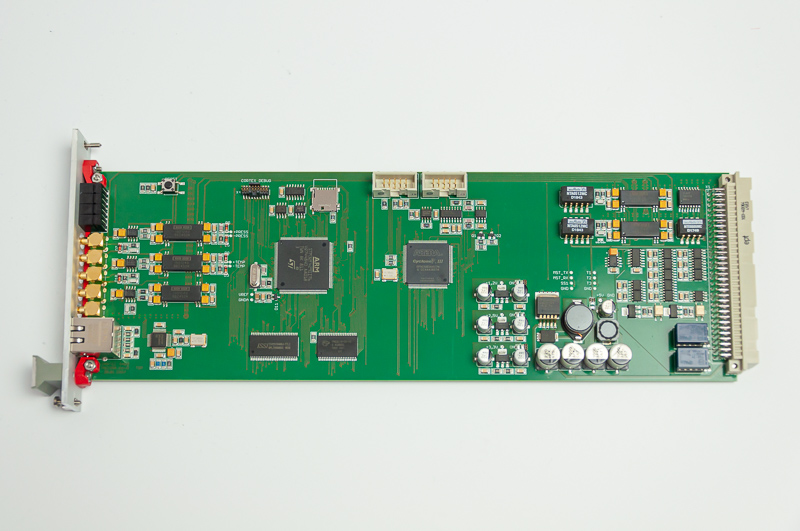

Key data:
- Controller for control and parameterization of up to 24 HDEV6 driver stages PN2351
- Ethernet interface for controlling the entire system by means of VSGControl2 software
- Isolated RS485 interface for controlling the load power supplies
- Communication with PN2351 power amplifiers via LVDS high-speed serial interface
- 3 integrated pulse train generators for controlling up to 3 valve control units (VSGs) a 8 output stages (GN075-00-012)
Technical data:
- Pulse train T1...T3: 100us to 999900us, step size 100us, accuracy 1us
- Supply voltage 11.5 - 12.5V / max. 0.5A / max. 6W
- Dimension: 3U x 04TE x 300mm
Further information can be found in the manual of the module
(Download only possible after user registration).
Key data:
- Controller for control and parameterization of up to 6 HDEV output stages PN2111
- CAN / RS232 interface for controlling the entire system
- Generation of 6 sequential trigger pulses
Further information can be found in the manual of the module
(Download only possible after user registration).
Key data:
- Controller for control and parameterization of up to 6 MSV5 output stages PN2111-01
- Isolated USB interface for controlling the entire system by means of the GN070_Testsystem software.
- Generation of 6 sequential trigger pulses
- Number of trigger pulses individually adjustable
Further information can be found in the manual of the module
(Download only possible after user registration).
Key data:
- Controller for driving up to 4 HDEV5 power amplifiers PN2130-xx
- Control via RS232, USB interface or front panel controls
- Parameterization of the output stages via SPI interface
- LCD display (2x8 characters) for status indication
Further information can be found in the manual of the module
(Download only possible after user registration).
Key data:
- Controller for controlling up to 12 measuring power amplifiers with 2 channels each (top & bottom)
- Channels independently parameterizable and controllable
- Isolated analog interface for programming the load power supplies
- Analog inputs for voltage measurement of the load power supplies
- Used load power supply types configurable
- Isolated USB / RS232 interfaceIntegrated pulse generator per output stage channel. Operating modes: dynamic, n-dynamic, static, t-static
- Signaling of a power stage / injector error via potential-free relay contact
Further information can be found in the manual of the module
(Download only possible after user registration).
